maximum operating pressure: 16 bar
minimum operating temperature: -10°C
maximum operating temperature: +115°C
DOWNLOAD

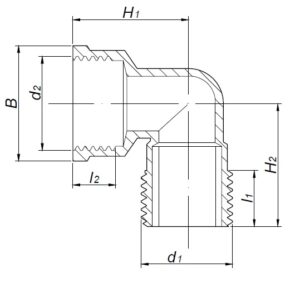

Dimensions in mm. Thread connections in accordance to PN-EN ISO 228-1:2005
| SIZE | SYMBOL | UNIT OF MEASURE | PACKAGING | EAN |
|---|---|---|---|---|
| 3/8″ | SF58-3/8 | pcs | 500/10 | 5902150559610 |
| 1/2″ | SF58-1/2 | pcs | 300/10 | 5904323422431 |
| 3/4″ | SF58-3/4 | pcs | 200/10 | 5904323422448 |
| 1″ | SF58-1 | pcs | 100/10 | 5904323422424 |
The right to make material and construction changes is reserved.
